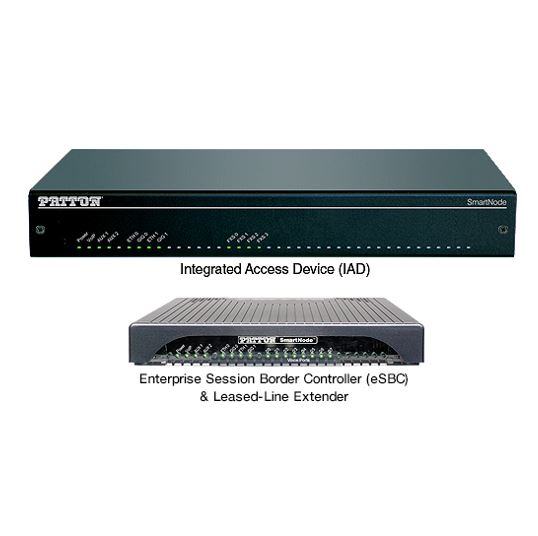

SmartNode 5540 All-IP Session Border Controller

The SmartNode 5540, is a cost effective eSBC with integrated Broadband access and up to 8 FXS/FXO ports supporting a high level of VoIP and network security. It is capable of doing up to 200 SIP to SIP calls*** whereof max. 4 can be transcoded**. Built-in QoS functionalities and support of G.722 high definition codec ensure excellent VoIP call quality.

• WAN Access—Fiber SFP, G.SHDSL-EFM/ATM, Gigabit Ethernet or VDSL/ADSL WAN interface.
• SIP Registrar – License is included in ALL eSBC products.

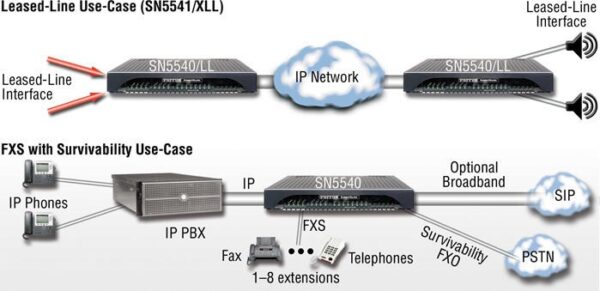

• Up to 8 Analog interfaces (FXS/FXO)—2, 4 or 8 analog ports. Either FXS or FXO or a combo configuration. Up to 8 G.722/G.711 or T.38 calls simultaneously. Leased line 2W/4W optional.

• Full Telephony Features—Session Router allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, and much more.Full SIP-ISDN AOC support.
• Outstanding Interoperability—Interoperable for data, voice and T.38 fax with leading, SIP service providers, soft-switch vendors, major IP-PBX systems and various DSLAMs.
• Complete Access Routing—Two 10/100/1000 Ethernet ports with auto-MDI-X. Ethernet Layer 2 switching and bridging. Access router with NAT, Policy Based Routing, Stateful Firewall, PPPoE, DHCP, DynDNS.
• Easy Management & Provisioning—Web-based management, WEB Wizard, SNMPv3, command line interface, secure, zero-touch provisioning separate config. domain support, TR-069.
• Full VoIP protocol support—SIPv2, SIPv2 over TLS, T.38, G.722 HD voice, RTP Security with SRTP, fax and modem bypass, DTMF relay.
• Outstanding Interoperability—Interoperable for voice and T.38 fax with leading SIP service providers, softswitch vendors, and major IP-PBX manufacturers.
• Why SmartNode™?
  • Patton Quality
  • Made in the USA
  • Unrivaled Customer Support
  • FREE Support and Upgrades
