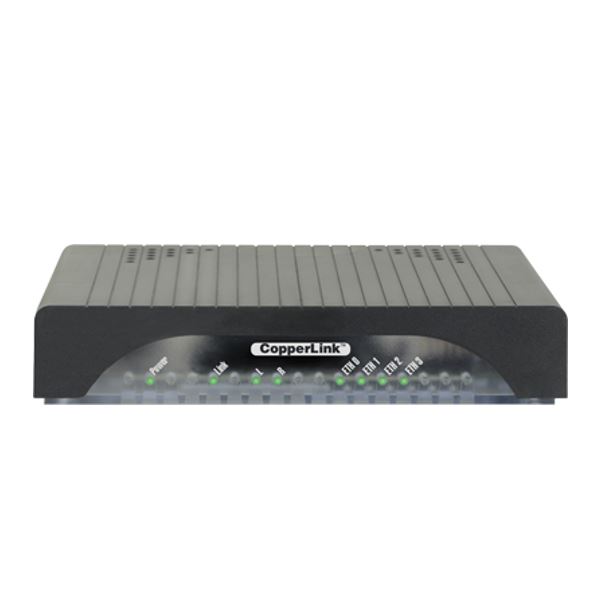

CopperLink CL1214 High Speed Ethernet Extenders

The CopperLink CL1214, achieving downstream line rates up to 168 Mbps over single twisted-pair, Cat 5e/6/7 or coaxial cable, Patton’s CopperLink™ Model 1214 Ultra-High-Speed Ethernet Extender is the fastest CopperLink™ ever.

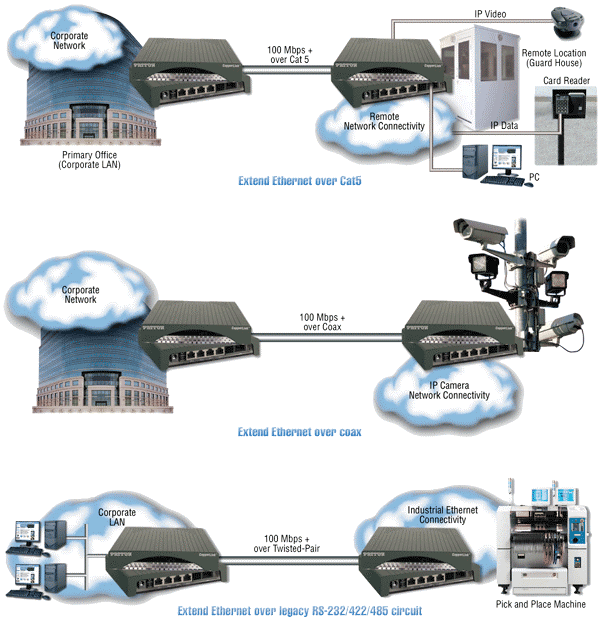

• Ethernet Extension—Extend 10/100Base-TX Ethernet up to 10,000 feet (3 kilometers)—well beyond the 328-foot (100-meter) limitation—over a single twisted-pair, Cat 5e/6/7, or even coaxial cable.
• Operates Over Twisted Pair—Realize fiber-optic speeds without the expense—and hassle—of installing new cables or line-of-site wireless circuits.
• Plug and Play—Set these units up straight out of the box. No configuration is required. Auto-sensing 10/100 Ethernet ports support full or half duplex operation.
• Multiple Line Rates Supported—Boasting downstream line rates up to 168 Mbps, the switch-selectable rate mode options optimize rate and reach for the noise environment, wire gauge/type and length.
• Transparent LAN Bridging—Bypass network configuration requirements by transparently passing all higher layer protocols—including 802.1Q VLAN frames (tagged and untagged). Data-transmission mechanism is fully transparent to such IP video compression schemes as MPEG-4, H.264 and MJPEG.
• Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton’s American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
